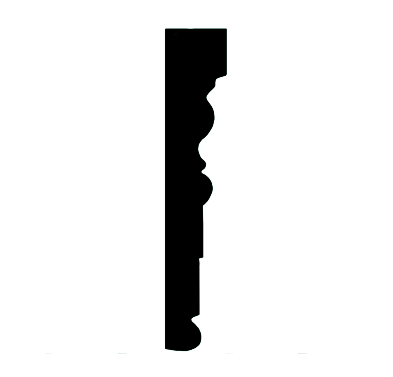

AR15001-AP404

AR15001-AP404

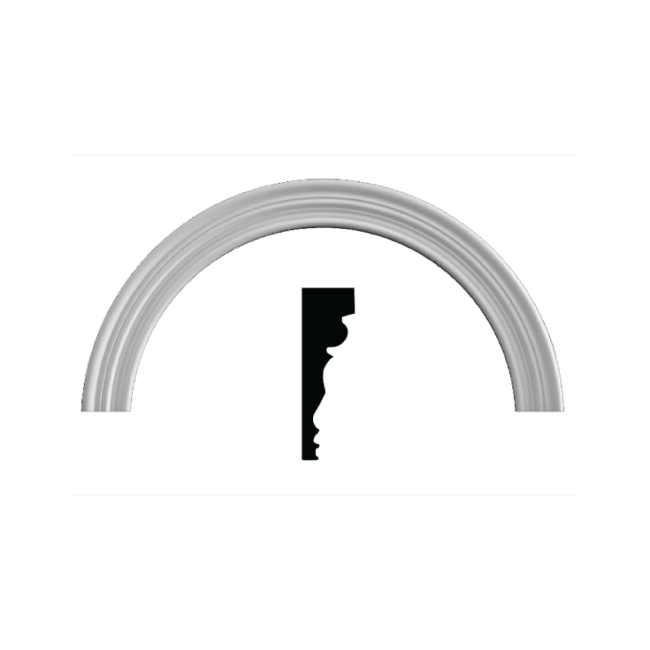

AR15001-AP405

CODE ar15001

Radius Arch up to 1500mm

Pair Radius Arch sweeps up to 1500mm maximum width

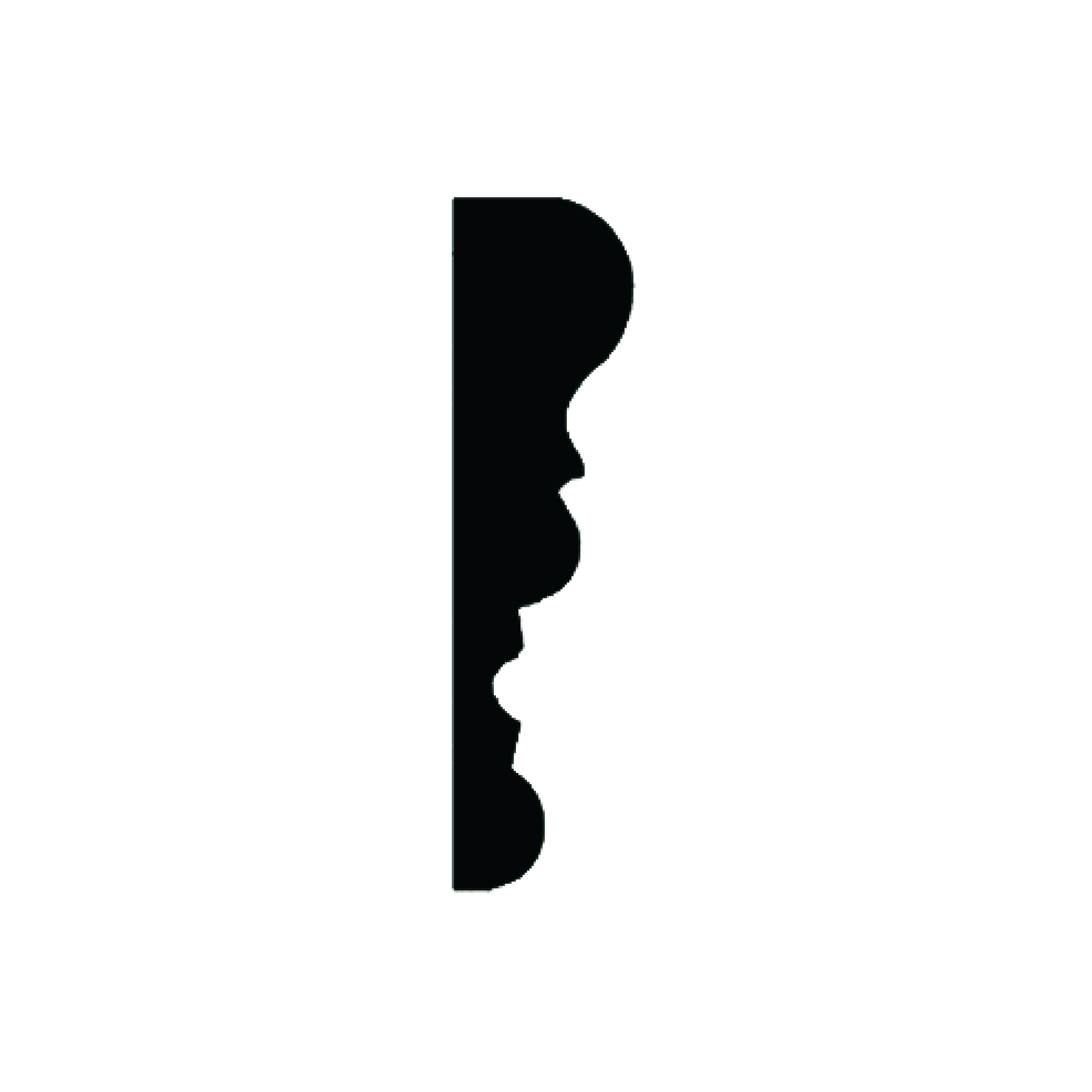

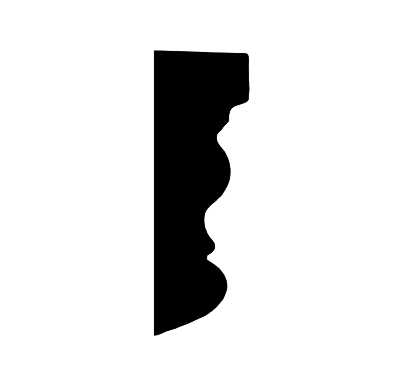

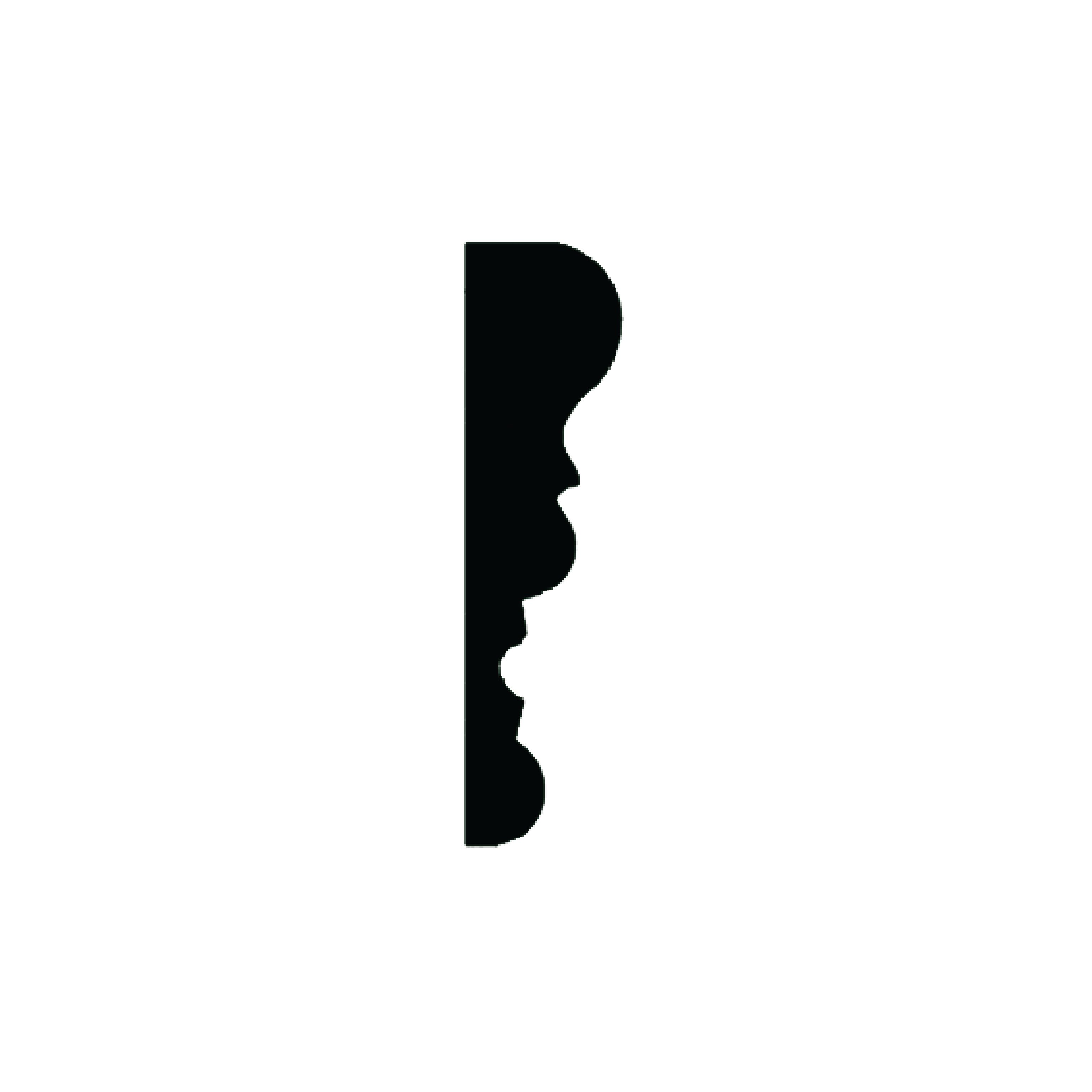

Select Arch Profile

Clear

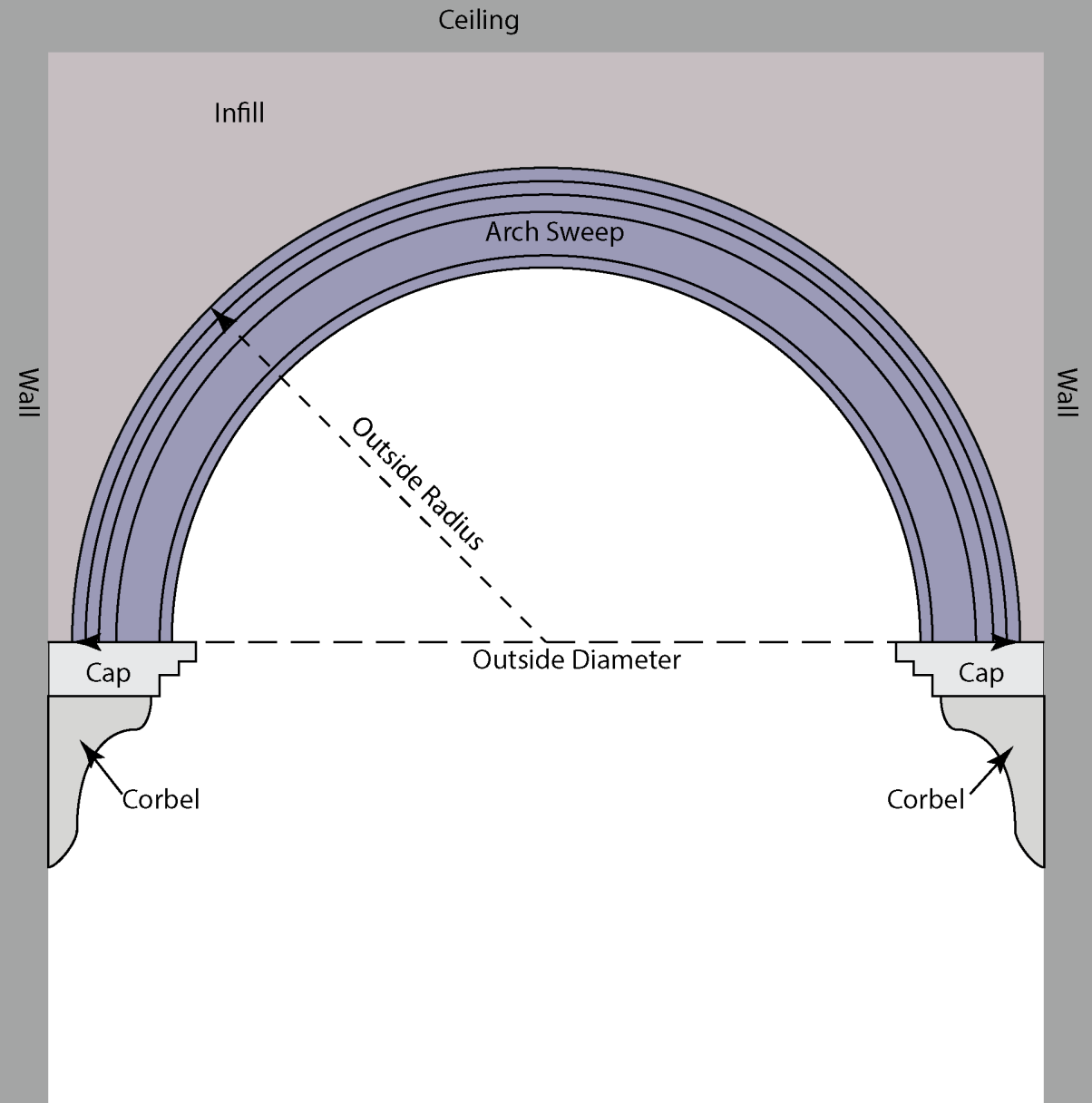

Enter width of arch (External Diameter)

For arches wider than 1500mm please see AR15002.

Quantity

Need a different size? Ask us for a quote!

Installation available Speak with a professional

Description

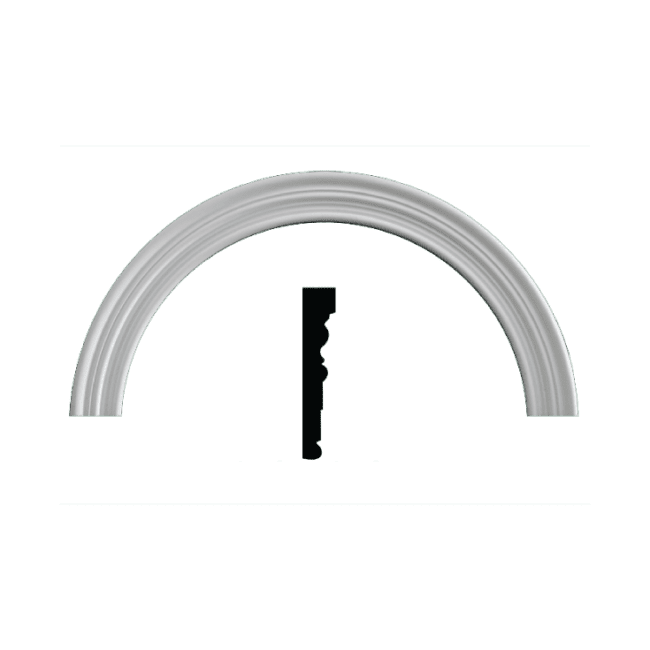

This is a Radius Arch and is made to measure with your choice of profile. It comes as 2 arch sweeps.

The arch sweeps are semi circles, thus the name Radius Arch.

If corbels are required, they should be purchased separately.

This radius arch can be made to any diameter up to 1500mm. For larger arches please see AR15002.

Step by Step

01

Measure

Measure the width of the passage, hall or other location.

At this time, you can also measure or workout the width of the NIB as this influences your choice of corbel.

You can find more detailed instructions here.

02

Select Profile

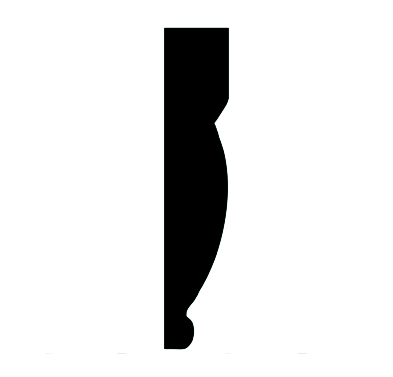

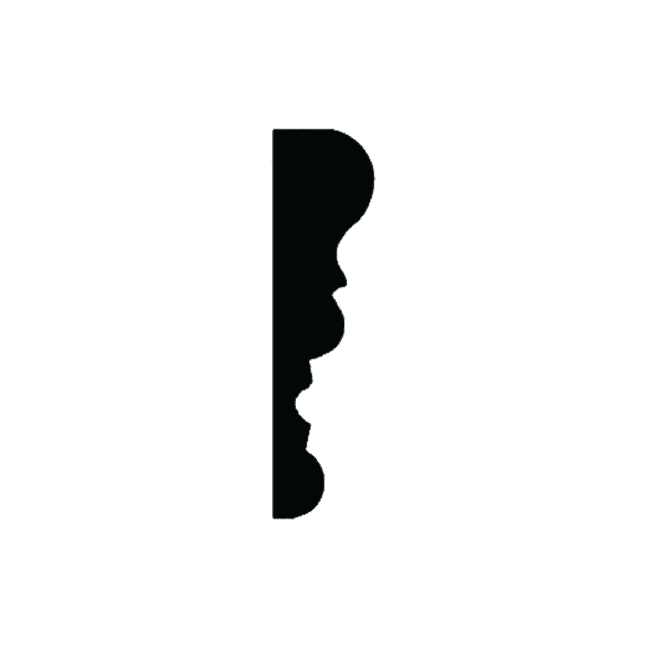

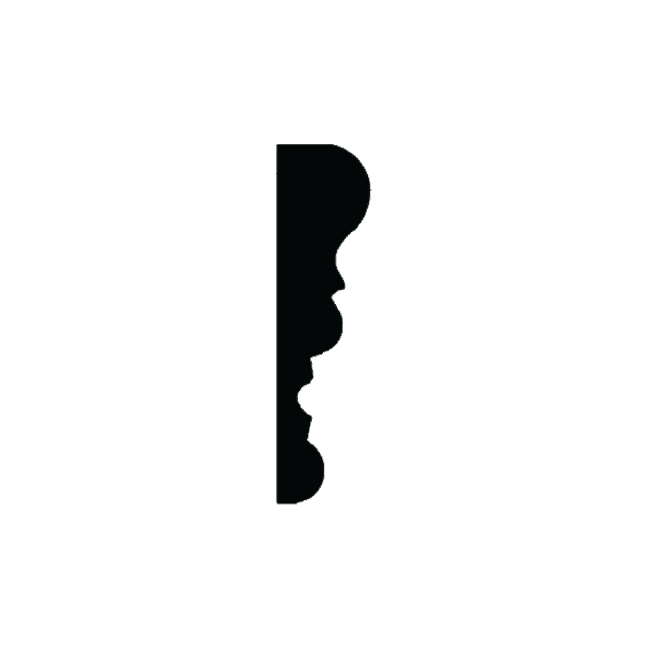

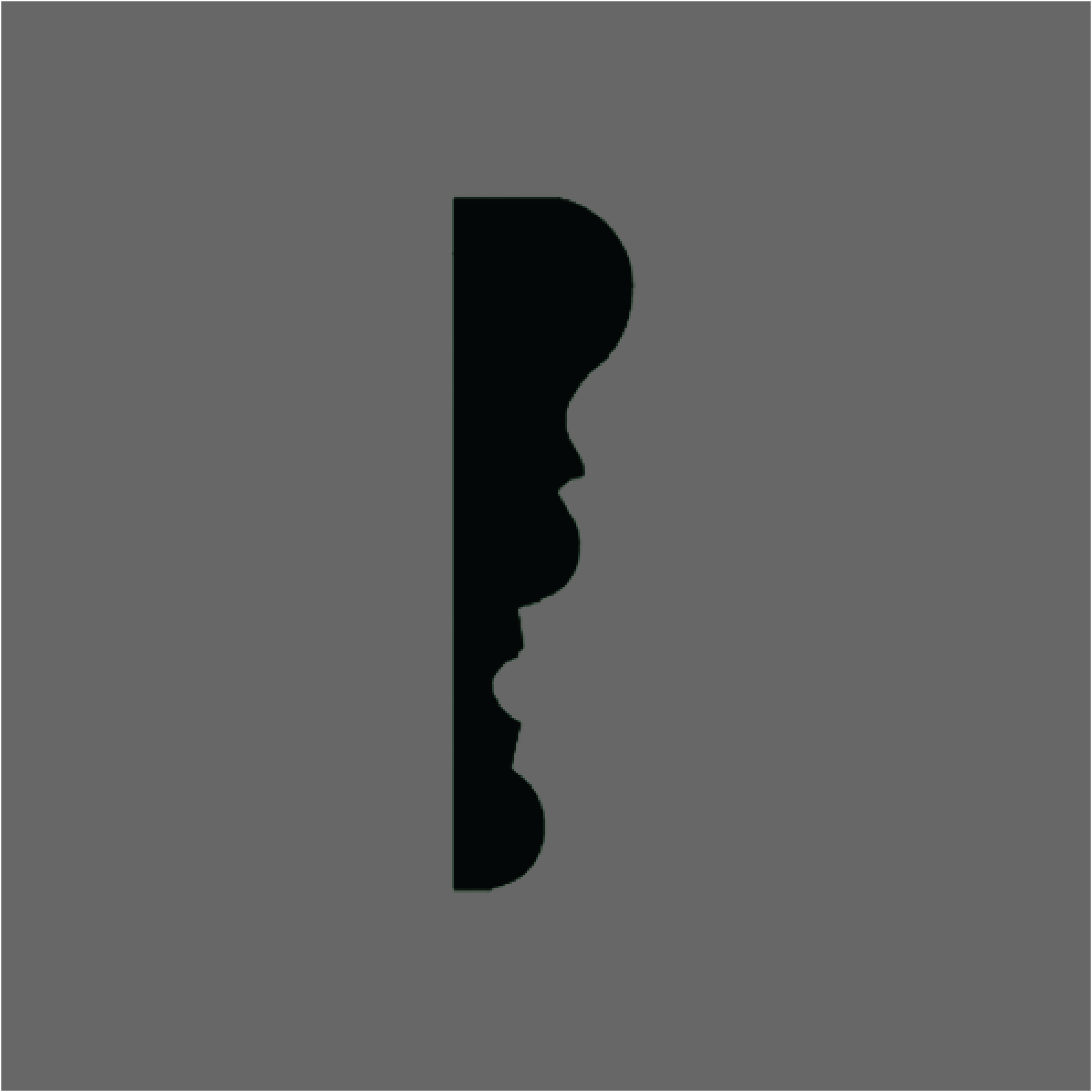

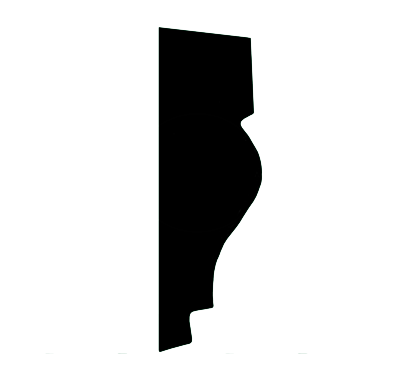

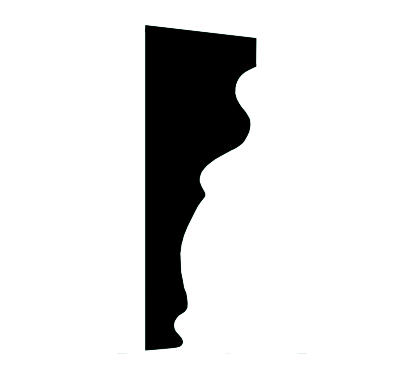

The profile of the arch can be selected on Arch Profiles.

Note the profile and use it when ordering (above).

03

Select Corbels

Corbels provide the finishing touch. A selection can be viewed below or the complete range of Corbels here and Caps here.

Select the Corbel Style

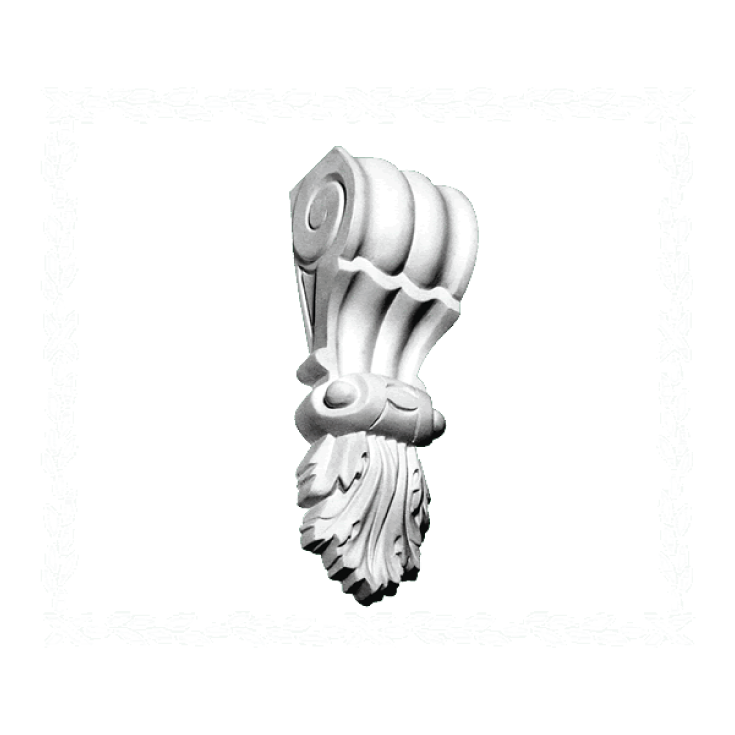

CB312

Select

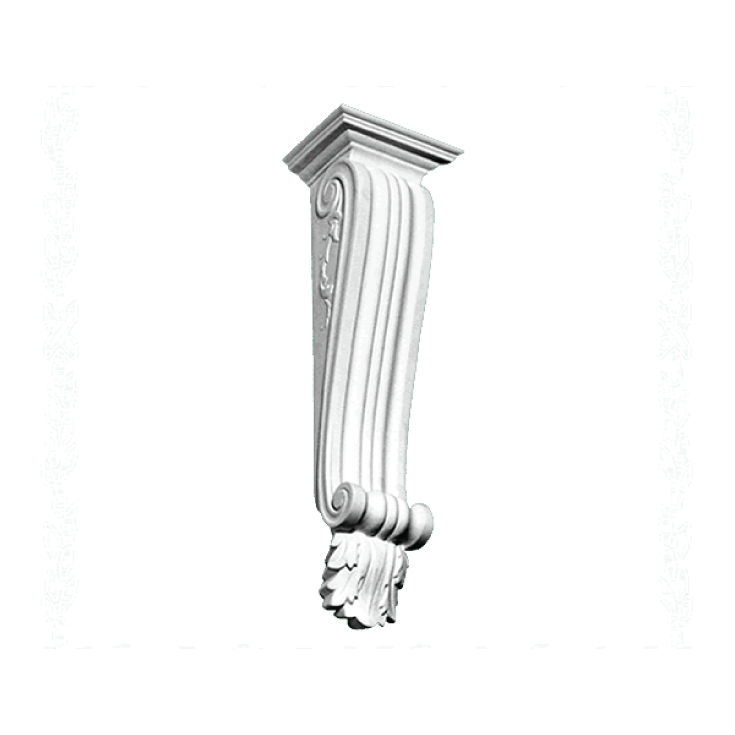

CB313

Select

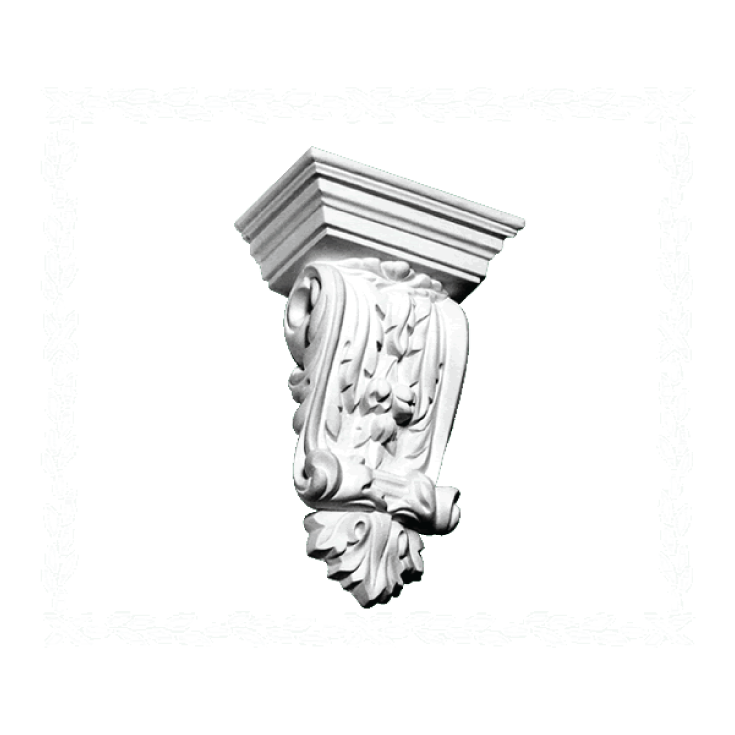

CB315

Select

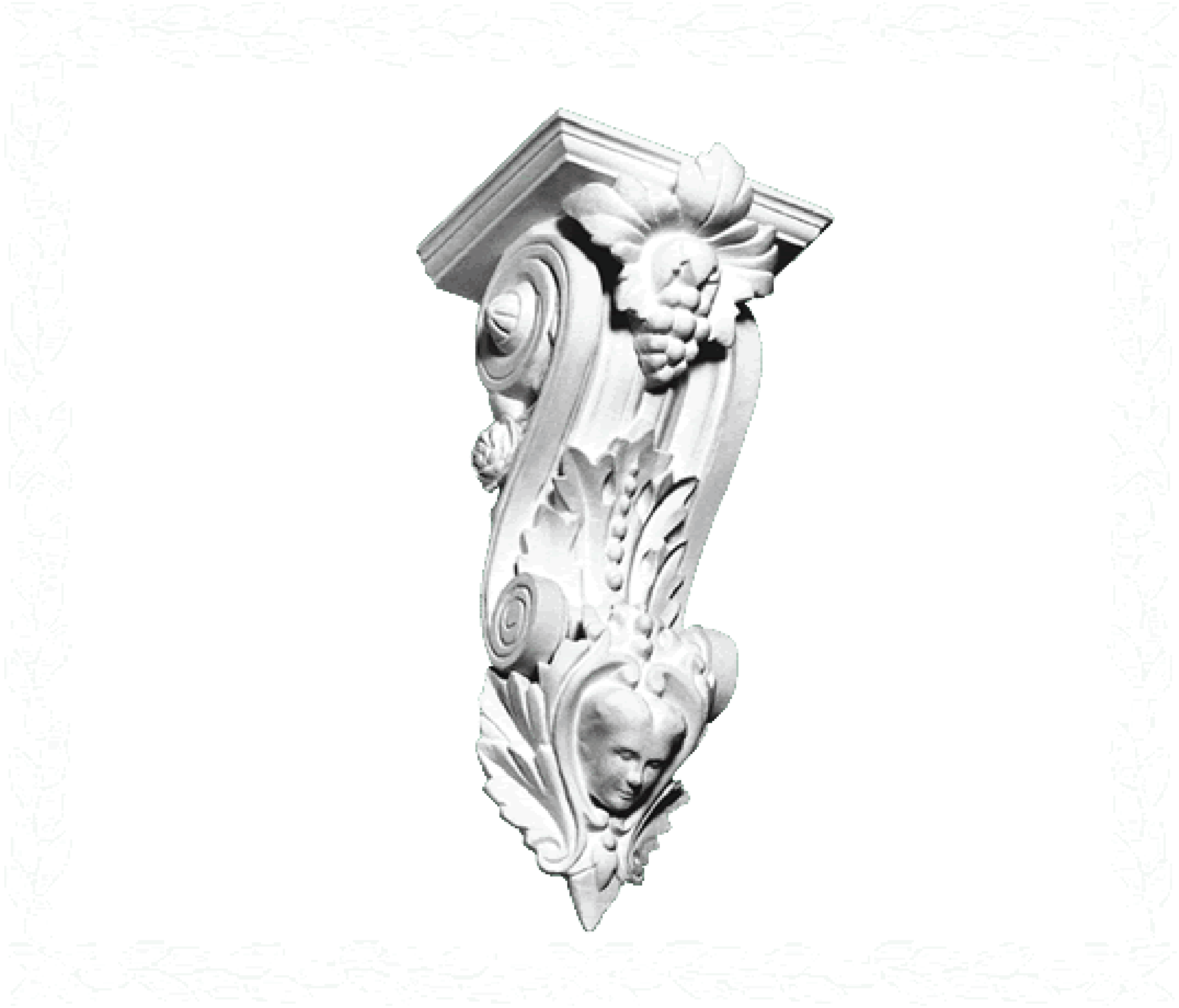

CB325

Select

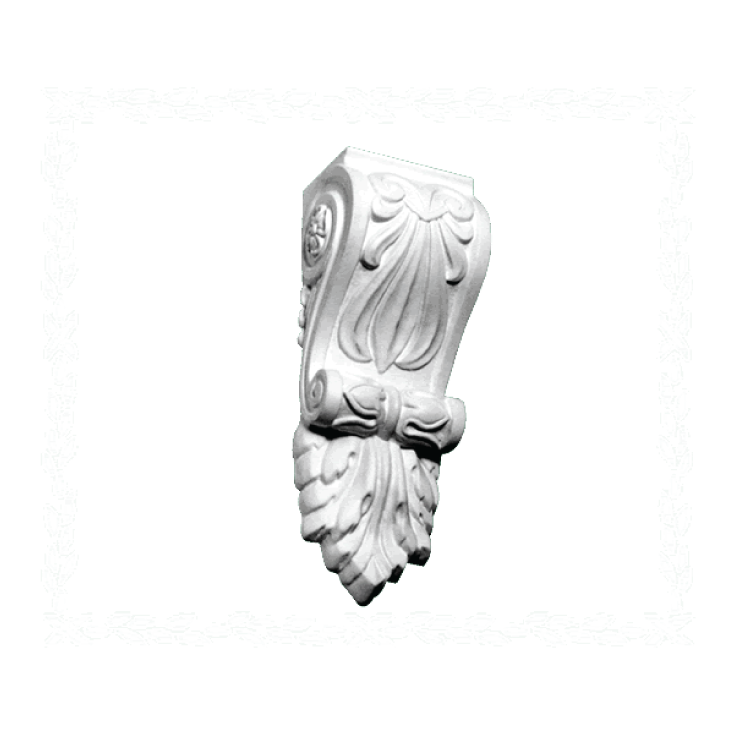

CB329

Select

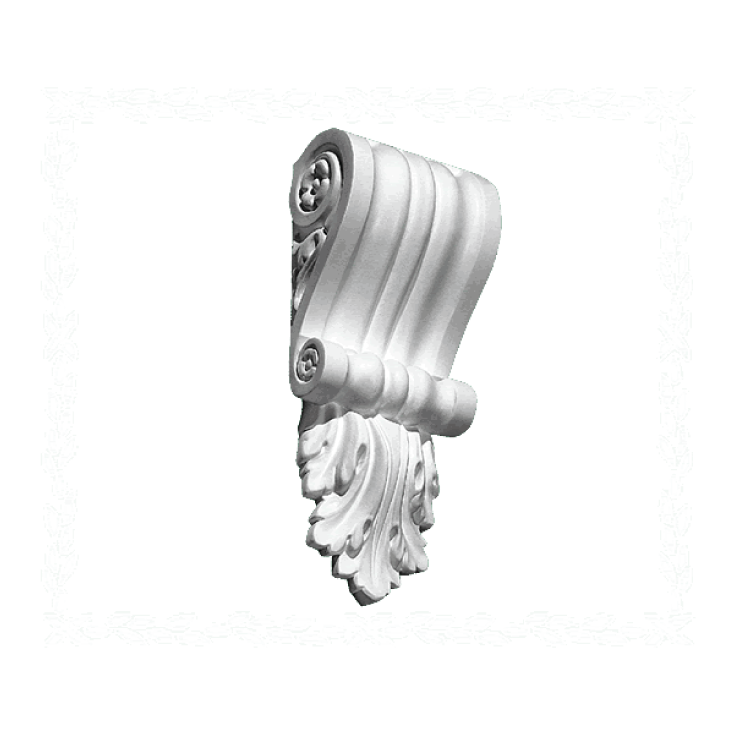

CB330

Select

Select the Caps Style

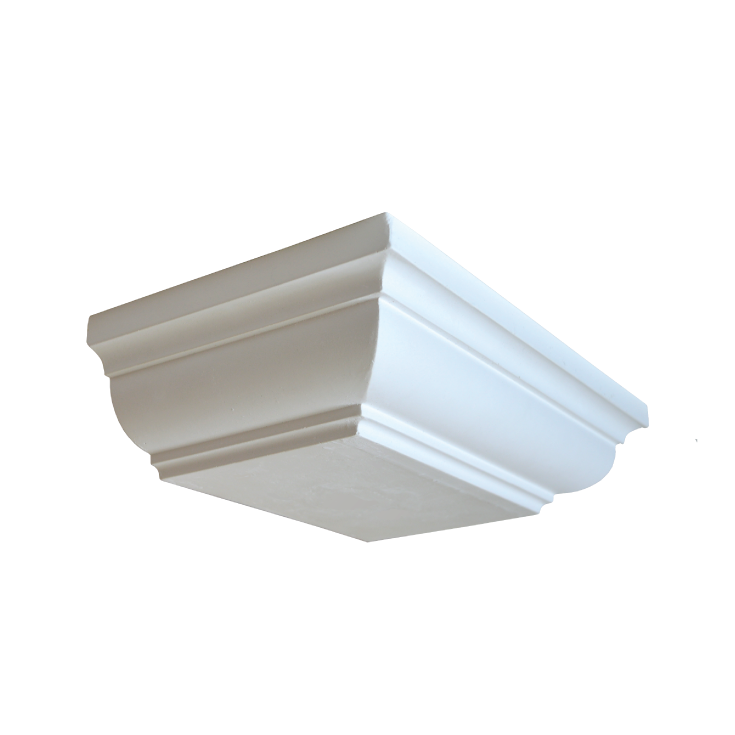

CA348

Select

CA341

Select

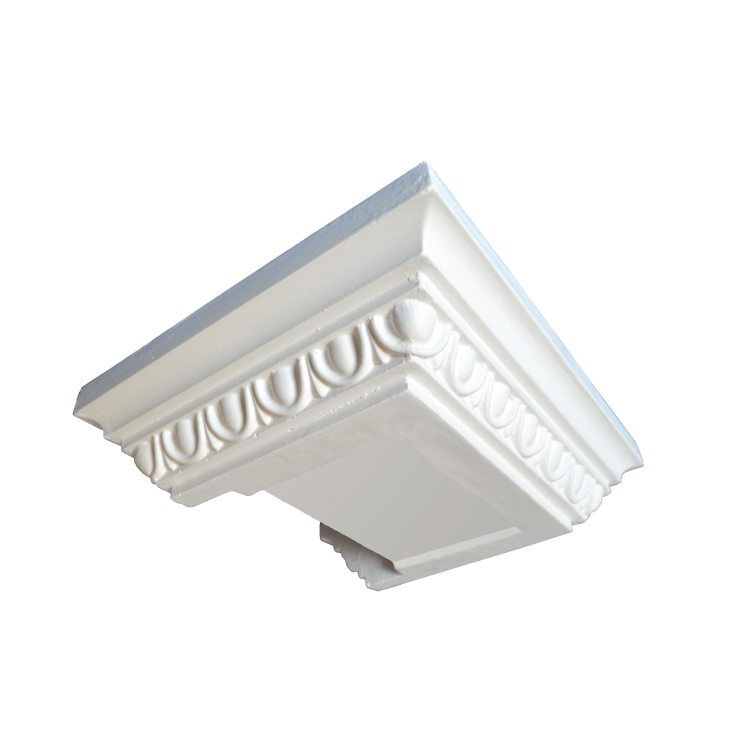

CA347

Select

CA343

Select

CA342

Select
